How Do Specialty Steel and Stainless Steel EAF Producers Address Cracking of Thermal Shock Graphite Electrodes?
Introduction

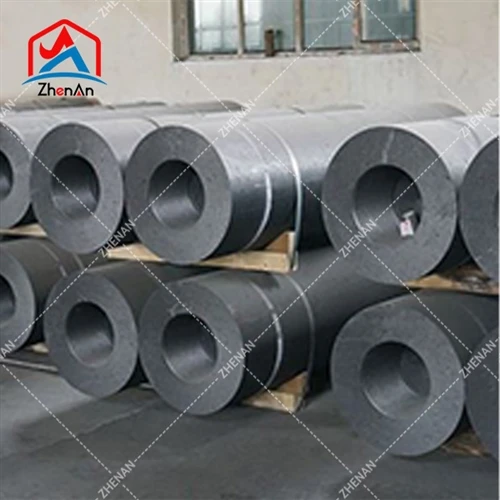

Thermal shock graphite electrodes represent one of the most critical consumables in specialty steel and stainless steel electric arc furnace (EAF) operations. For producers working with high-alloy grades, nickel-based superalloys, and chromium-rich stainless steels, graphite electrode performance directly influences melt consistency, energy efficiency, and production cost control.
Unlike conventional carbon steel EAFs, specialty steel and stainless steel furnaces operate under distinctive thermal regimes. Stainless steel production typically combines EAF melting with argon oxygen decarburization (AOD) refining, subjecting electrodes to prolonged high-temperature exposure, frequent power fluctuations, and intermittent thermal cycling. Specialty steel EAFs handling tool steels, bearing steels, or high-speed steels require precise temperature windows and extended refining periods that amplify thermal stress on the electrode column.
Graphite electrode cracking triggered by thermal shock remains a leading cause of unplanned downtime. Industry research indicates thermal stress failure accounts for approximately 45% of all electrode breakage incidents in high-power EAF applications. This guide examines the thermal shock cracking mechanism specific to specialty steel and stainless steel EAF environments, identifies root causes, and outlines practical prevention strategies for procurement managers and furnace engineers.
Key Answer Summary
Based on industry experience, the main factors affecting thermal shock cracking in specialty steel and stainless steel EAFs include:
| Factor | Impact | Solution |
|---|---|---|
| Rapid temperature cycling | Generates transient thermal stress exceeding graphite tensile strength | Implement controlled preheating procedures and gradual current ramp-up |
| CTE mismatch between electrode and nipple | Concentrates stress at joint interfaces, initiating crack propagation | Select matched-grade nipples with compatible CTE values |
| Low electrode grade thermal resistance | Insufficient thermal shock tolerance for high-fluctuation furnace regimes | Upgrade from RP to HP or UHP grades for improved thermal stability |
| Inadequate joint design | Poor thread engagement or dust contamination increases local resistance and heating | Use precision-machined nipples and enforce clean connection protocols |
| Aggressive slag chemistry | Oxidizing slag attacks electrode surface, reducing effective cross-section | Optimize slag basicity and minimize direct slag-electrode contact |
| Intermittent furnace operation | Cold starts and frequent shutdowns subject electrodes to repeated thermal shock | Maintain electrode column temperature between heats where operationally feasible |
What Causes Thermal Shock Cracking in Specialty Steel and Stainless Steel EAFs?
1. Transient Thermal Stress from Rapid Heating and Cooling
Thermal shock graphite electrodes are subjected to extreme thermal gradients during EAF operation. Graphite expands approximately 0.12% for every 100°C increase in temperature, and electrodes experience steep gradients between inner core and outer surface, with differentials exceeding 1,500°C in extreme cases. When power is ramped rapidly or cold electrodes are inserted into a hot furnace, the resulting thermal stress can exceed tensile strength, initiating micro-cracks that propagate under repeated cycling.
In stainless steel EAFs, the electrode tip faces direct arc temperatures above 3,000°C while the upper column remains relatively cool. This axial gradient is particularly severe during the initial melting phase, when scrap charging and burner operations create uneven heat distribution.
2. Coefficient of Thermal Expansion (CTE) Mismatch
The coefficient of thermal expansion (CTE) determines how much a material expands per degree of temperature change. Graphite electrodes and their connecting nipples must exhibit compatible CTE values to prevent stress concentration at joints. When CTE mismatch occurs, each heating cycle generates shear stress at the electrode-nipple interface, progressively loosening the connection and creating localized overheating that accelerates cracking.
Industry data from major graphite electrode manufacturers show that UHP electrode CTE values range from 1.1 to 1.5 × 10⁻⁶/°C (100–600°C), while RP grades typically measure 2.2 to 2.9 × 10⁻⁶/°C. Nipples are manufactured with slightly lower CTE than matching electrode bodies to ensure compressive stress at the joint under thermal load. Using mismatched grades violates this design principle and elevates cracking risk.
3. Frequent Power Fluctuations and Current Surges
Specialty steel and stainless steel EAFs require precise power control to achieve target chemistry and temperature. Frequent adjustments to transformer tap settings and arc length create current surges that produce rapid joule heating within the electrode. Power ramp rates exceeding 2 MW per minute generate excessive internal temperature gradients, particularly in electrodes with higher electrical resistivity.
Controlling ramp rates within recommended thresholds, for example, 0.8–1.2 MW per minute for large-diameter electrodes, can reduce thermal stress-related breakages by approximately 28%. This parameter is especially relevant for stainless steel operations where extended refining periods necessitate multiple power adjustments.
4. Oxidation and Slag Attack Weakening Electrode Structure
At temperatures above 600°C, graphite oxidizes rapidly in oxygen-rich environments. Side oxidation reduces effective electrode diameter, concentrating current density and increasing resistive heating. In stainless steel EAFs, foaming slag and oxygen lancing near the electrode column accelerate this degradation.
Molten slag containing iron oxide and manganese oxide chemically attacks the electrode surface when direct contact occurs, creating surface irregularities that act as stress concentrators and lower thermal shock resistance.
5. Mechanical Stress Superimposed on Thermal Loading
Electrode columns in specialty steel EAFs are subject to bending forces from scrap impact and column misalignment. When mechanical stress combines with thermal stress, the combined loading can exceed flexural strength, typically 8–14 MPa depending on grade. Mechanical overload accounts for roughly 30% of breakage incidents, and thermal shock cracks often serve as initiation points for mechanical failure.
How Can Customers Solve Thermal Shock Cracking Problems?
1. Select the Appropriate Electrode Grade for Furnace Conditions
Managing thermal shock graphite electrodes effectively begins with matching electrode grade to furnace power level and operating regime. For specialty steel and stainless steel EAFs operating at high current density or frequent thermal cycling, UHP or HP grades offer substantially better thermal shock resistance than RP alternatives.
UHP electrodes exhibit lower CTE, higher density, and improved thermal conductivity, enabling more uniform temperature distribution and better dissipation of transient thermal stress. A European steelmaker operating a 150-ton EAF reported a 29% reduction in thermal stress failures after upgrading to UHP electrodes.
For medium-power specialty steel furnaces, HP electrodes provide a balanced solution with improved thermal properties over RP at a moderate cost increase. RP electrodes remain suitable only for regular-power furnaces with stable thermal regimes.
2. Implement Controlled Preheating Procedures
Preheating electrodes before insertion into a hot furnace reduces thermal shock amplitude during startup. Industry best practice recommends raising electrode temperature gradually, either through radiant preheating or controlled low-current exposure, before applying full melting power.
Preheating is especially critical in stainless steel EAFs with intermittent schedules. A structured preheating procedure reduces the temperature differential between core and surface, directly lowering transient thermal stress.
3. Optimize Current Ramp Rates and Power Profiles
Power ramp rates should be controlled according to electrode diameter and furnace design. General guidelines suggest:
- 300–400 mm diameter: 1.5–2.0 MW per minute maximum
- 450–500 mm diameter: 1.0–1.5 MW per minute maximum
- 500 mm and above: 0.8–1.2 MW per minute maximum
For stainless steel operations with AOD coupling, coordinating EAF power reduction with ladle transfer avoids abrupt thermal transitions. Static VAR compensators can reduce voltage fluctuations to within ±2% of setpoint, improving arc stability and reducing electrode vibration that compounds thermal stress.
4. Ensure Proper Joint Design and Connection Protocol
The electrode-nipple joint represents the most common failure location for thermal shock cracking. Best practices include:
- Using nipples matched to the electrode grade, with compatible CTE values
- Cleaning threads thoroughly before connection to eliminate dust and debris
- Applying manufacturer-recommended torque during joint assembly
- Inspecting joints for visible cracks or discoloration before each heat
- Replacing nipples that show oxidation, deformation, or thread damage
Precision-machined nipples with optimized thread geometry distribute loads more evenly across the joint surface. Dust slots on premium nipples facilitate pressure equalization and reduce thermal stress concentration.
5. Monitor and Control Slag Chemistry and Oxygen Practice
Optimizing slag basicity and foaming characteristics reduces direct electrode-slug contact. For stainless steel EAFs, maintaining a balanced slag with appropriate CaO/SiO₂ ratio and controlled FeO content minimizes chemical attack on the electrode surface.
Oxygen lances should be directed at the molten bath rather than the electrode column. CFD studies recommend lance angles of 15–20 degrees from vertical to avoid impingement on electrode surfaces. One US steelmaker reported a 40% reduction in electrode oxidation rates after implementing optimized oxygen lancing parameters.
6. Adopt Predictive Monitoring Technologies
Modern EAF operations increasingly deploy monitoring systems to detect early signs of electrode degradation:
- Infrared thermography maps real-time temperature distribution, identifying abnormal gradients exceeding 200°C per centimeter that indicate developing thermal stress concentrations.
- Acoustic emission sensors detect micro-crack formation through characteristic frequency signatures in the 30–100 kHz range.
- Resistance monitoring tracks changes in electrical resistance along the electrode column; an increase exceeding 15% from baseline indicates significant internal structural damage.
A European EAF trial found that integrating infrared thermography with process control reduced thermal-related breakages by 52%.
Expert Insight
Based on practical industry requirements for specialty steel and stainless steel EAF operations, the following insights guide electrode thermal shock management:
1. Grade selection matters more than diameter optimization for thermal shock resistance. While larger diameters reduce current density, the intrinsic CTE and thermal conductivity of UHP versus RP grades have a more significant impact on crack resistance under cyclic thermal loading.
2. Preheat consistency outperforms single extreme measures. A moderate preheating protocol applied consistently across every heat delivers better results than aggressive preheating on some heats while skipping others.
3. Nipple quality is as critical as electrode quality. Premium electrodes fitted with substandard or mismatched nipples fail prematurely at the joint. Procurement should source electrodes and nipples as matched systems from qualified manufacturers.
4. Stainless steel AOD coupling creates unique thermal profiles. The extended time between EAF tapping and AOD blowing means electrodes experience longer cooling intervals, making restart thermal shock more severe than in continuous carbon steel operations. 5. Thermal shock cracks often precede catastrophic mechanical failure. Early detection through visual inspection enables planned replacement before fracture occurs.
RP VS HP Graphite Electrodes
For specialty steel and stainless steel EAF producers evaluating electrode upgrades, understanding the differences between RP and HP grades is essential.
| Feature | RP Graphite Electrode | HP Graphite Electrode |
|---|---|---|
| Application | Regular power EAFs, low current density | Medium-high power EAFs, alloy steel melting |
| Thermal Shock Resistance | Moderate; higher CTE increases crack susceptibility under rapid cycling | Good; lower CTE and improved microstructure reduce thermal stress |
| CTE (100–600°C) | 2.2–2.9 × 10⁻⁶/°C | 1.6–2.4 × 10⁻⁶/°C |
| Electrical Resistivity | 6.5–8.5 μΩ·m | 5.5–6.5 μΩ·m |
| Bulk Density | 1.52–1.56 g/cm³ | 1.62–1.68 g/cm³ |
| Flexural Strength | 7.0–10.0 MPa | 10.0–13.0 MPa |
| Typical Current Density | 13–16 A/cm² | 15–24 A/cm² |
| Cost Position | Lowest unit cost | Moderate premium over RP |
Key Difference for Thermal Shock: HP electrodes offer approximately 20–30% lower CTE than RP grades, translating directly to reduced thermal stress amplitude during rapid heating. The higher bulk density and improved flexural strength of HP grades also provide better resistance to crack initiation under combined thermal and mechanical loading. For specialty steel EAFs experiencing intermittent operation or power fluctuations, upgrading from RP to HP typically delivers measurable reductions in thermal shock cracking incidents.
HP VS UHP Graphite Electrodes
For high-performance specialty steel and stainless steel EAFs, the choice between HP and UHP grades involves evaluating thermal performance against cost.
| Feature | HP Graphite Electrode | UHP Graphite Electrode |
|---|---|---|
| Application | Medium-high power EAFs, alloy and specialty steel | Ultra-high power EAFs, stainless steel, high-grade alloys |
| Thermal Shock Resistance | Good; suitable for most alloy steel operations | Excellent; finest microstructure and lowest CTE minimize crack risk |
| CTE (100–600°C) | 1.6–2.4 × 10⁻⁶/°C | 1.1–1.5 × 10⁻⁶/°C |
| Electrical Resistivity | 5.5–6.5 μΩ·m | 4.5–5.5 μΩ·m |
| Bulk Density | 1.62–1.68 g/cm³ | 1.68–1.74 g/cm³ |
| Flexural Strength | 10.0–13.0 MPa | 11.0–14.0 MPa |
| Typical Current Density | 15–24 A/cm² | 18–30 A/cm² |
| Cost Position | Moderate | Premium; highest unit cost |
Key Difference for Thermal Shock: UHP electrodes achieve the lowest CTE values available in standard graphite electrode grades, typically 1.1–1.4 × 10⁻⁶/°C for electrode bodies and 0.9–1.2 × 10⁻⁶/°C for matching nipples. This near 50% reduction in CTE compared to HP grades dramatically lowers thermal stress generation during rapid power changes. UHP electrodes also feature higher thermal conductivity, promoting more uniform temperature distribution.
For stainless steel EAFs operating with AOD downstream refining, UHP electrodes provide the thermal stability needed to withstand extended arc times and repeated power adjustments. The investment in UHP grades is typically justified by reduced breakage rates and lower specific consumption.
Product Selection Guide
How To Choose The Right Graphite Electrode For Your Specialty Steel or Stainless Steel EAF?
Technical Requirements
- [ ] Product grade: Select RP for stable, low-power operations; HP for medium-power alloy steel EAFs; UHP for high-power stainless steel or specialty steel furnaces with frequent thermal cycling
- [ ] Specification: Match electrode diameter to furnace transformer capacity and desired current density; verify nipple thread standard (3 TPI or 4 TPI) against existing holders
- [ ] Application condition: Assess operating cycle frequency, power fluctuation magnitude, and slag chemistry aggressiveness
- [ ] Quality requirements: Specify CTE, resistivity, flexural strength, and ash content based on furnace OEM recommendations or internal technical standards
- [ ] Performance target: Define acceptable electrode consumption rate (kg per tonne of steel) and maximum allowable breakage frequency
Commercial Requirements
- [ ] Supply capacity: Confirm supplier can deliver consistent monthly volumes aligned with production schedule
- [ ] Delivery time: Verify lead times for standard sizes and custom diameters; assess buffer stock requirements
- [ ] Export experience: Evaluate supplier's track record with international logistics, documentation, and customs clearance
- [ ] Documentation: Request mill test certificates, ISO 9001:2015 quality certification, and IEC 60239 compliance verification
- [ ] Technical support: Confirm availability of application engineering support for grade selection and troubleshooting
Technical Data Section
| Parameter | Typical Range | Importance for Thermal Shock Resistance |
|---|---|---|
| CTE (100–600°C) | RP: 2.2–2.9; HP: 1.6–2.4; UHP: 1.1–1.5 (×10⁻⁶/°C) | Lower CTE reduces thermal stress amplitude during heating cycles |
| Electrical Resistivity | RP: 6.5–8.5; HP: 5.5–6.5; UHP: 4.5–5.5 (μΩ·m) | Lower resistivity reduces joule heating and internal temperature gradients |
| Bulk Density | RP: 1.52–1.56; HP: 1.62–1.68; UHP: 1.68–1.74 (g/cm³) | Higher density improves structural integrity and crack resistance |
| Flexural Strength | RP: 7.0–10.0; HP: 10.0–13.0; UHP: 11.0–14.0 (MPa) | Higher strength enables greater tolerance to combined thermal and mechanical stress |
| Young's Modulus | RP: ≤9.3; HP: ≤14; UHP: ≤14 (GPa) | Lower modulus generally improves thermal shock resistance by accommodating deformation |
| Ash Content | RP: ≤0.5%; HP/UHP: ≤0.3% | Lower ash ensures higher purity and consistent thermal properties |
| Nipple CTE (100–600°C) | RP: 2.0–2.5; HP: 1.1–1.4; UHP: 0.9–1.2 (×10⁻⁶/°C) | Matched nipple CTE is critical for joint integrity under thermal cycling |
Note: Values represent typical industry ranges from published manufacturer specifications. Exact values depend on product grade, nominal diameter, and supplier quality standards. Always verify current data with your supplier's mill test certificate.
Future Industry Trends
Technology Development
The global shift toward low-carbon steelmaking is accelerating EAF adoption for both carbon and stainless steel production. A growing share of newly built EAF lines are adopting UHP graphite electrode solutions to achieve higher power densities and lower energy consumption, placing increasing demands on electrode thermal shock resistance. Advanced coating technologies are extending electrode life by limiting oxidation rates and improving thermal shock resistance.
Procurement Changes
Specialty steel and stainless steel producers are increasingly moving toward strategic supplier partnerships. Long-term agreements enable collaborative optimization of grade selection, inventory management, and technical support. Quality assurance requirements are tightening, with more buyers requiring ISO 9001:2015 certification, IEC 60239 compliance, and batch-level traceability.
Furnace Design Evolution
Modern EAF designs for stainless steel production incorporate improved burner configurations and advanced electrode regulation controls that reduce thermal shock exposure. DC EAF technology, with its single electrode configuration and more stable arc behavior, is gaining traction in specialty steel applications where thermal shock management is critical.
Key Takeaways
- Thermal shock graphite electrodes in specialty steel and stainless steel EAFs fail primarily due to transient thermal stress exceeding tensile strength, with thermal stress contributing to approximately 45% of all electrode breakage incidents.
- Buyers should consider upgrading from RP to HP or UHP grades when operating furnaces with frequent power fluctuations, intermittent schedules, or high current density requirements, as lower CTE directly improves crack resistance.
- The best solution combines proper grade selection with operational controls, including preheating procedures, current ramp rate limits, matched nipple systems, and slag chemistry management.
- CTE values vary significantly across grades, with UHP electrodes offering roughly 50% lower thermal expansion than RP grades, translating to proportionally lower thermal stress under equivalent heating rates.
- Predictive monitoring using infrared thermography, acoustic emission, or resistance tracking can detect early-stage cracking before catastrophic failure, enabling planned maintenance and reducing unplanned downtime.
FAQ
What causes thermal shock cracking in graphite electrodes?
Thermal shock cracking in thermal shock graphite electrodes occurs when rapid temperature changes create internal stress that exceeds the graphite material's tensile strength. In EAF operations, common triggers include inserting cold electrodes into hot furnaces, abrupt power increases, and intermittent furnace schedules that subject electrodes to repeated heating and cooling cycles. The resulting stress concentration initiates micro-cracks that propagate with each subsequent thermal cycle.
How can companies reduce thermal shock cracking in specialty steel EAFs?
Companies can reduce thermal shock cracking by selecting UHP or HP electrodes with lower CTE; implementing controlled preheating; limiting power ramp rates to 0.8–2.0 MW per minute; using matched-grade nipples with compatible CTE; and optimizing slag chemistry. Predictive monitoring can detect early-stage degradation before fracture occurs.
Which graphite electrode grade offers the best thermal shock resistance?
UHP graphite electrodes provide the best thermal shock resistance among standard grades, with CTE values of 1.1–1.5 × 10⁻⁶/°C compared to 2.2–2.9 × 10⁻⁶/°C for RP grades. UHP electrodes also feature higher density, lower electrical resistivity, and improved microstructure uniformity. For stainless steel EAFs with AOD downstream refining, UHP grades are typically recommended to withstand extended arc times and repeated thermal cycling.
Why do electrode-nipple joints fail under thermal shock?
Joint failures under thermal shock result from CTE mismatch between electrode and nipple, thread contamination, insufficient torque during assembly, or mechanical misalignment. When CTE values are incompatible, each heating cycle generates shear stress at the interface, progressively loosening the connection. Localized overheating at a compromised joint further accelerates thermal degradation, often leading to breakage at or near the connection point.
What preheating procedure is recommended for graphite electrodes?
Industry best practice recommends preheating electrodes gradually before insertion into a hot furnace. This can be achieved through radiant preheating stations or controlled low-current exposure. The objective is to reduce the temperature differential between the electrode core and surface during startup, thereby lowering transient thermal stress. Preheating is especially important for stainless steel EAFs with intermittent operating schedules.
How does CTE affect graphite electrode performance in stainless steel production?
CTE directly determines the magnitude of thermal expansion under temperature change. In stainless steel EAFs, where electrodes experience frequent power adjustments and extended refining periods, lower CTE values reduce the internal stress generated during each thermal cycle. UHP electrodes with CTE around 1.1–1.5 × 10⁻⁶/°C generate significantly less thermal stress than RP electrodes at 2.2–2.9 × 10⁻⁶/°C, improving crack resistance and extending service life.
Product Recommendation
ZhenAn supplies RP, HP, and UHP graphite electrodes manufactured under ISO 9001:2015 quality management systems, with specifications aligned to IEC 60239 international standards.
Key advantages for thermal shock-critical applications:
- Grade flexibility: Full range from RP to UHP enables precise matching to furnace power level and thermal regime
- CTE consistency: Tight process control ensures CTE values remain within grade-specific ranges, supporting reliable thermal shock performance
- Matched nipple systems: Nipples supplied with compatible CTE and precision thread machining for optimal joint performance
- Application engineering: Technical support for grade selection, power profile optimization, and troubleshooting
Suitable customers: Specialty steel EAFs producing tool steels, bearing steels, and high-speed steels; stainless steel EAFs with or without AOD refining; alloy steel producers seeking to reduce electrode breakage and unplanned downtime.
Why Choose ZhenAn
Industry Experience
With 30+ years of graphite electrode manufacturing and supply experience, ZhenAn serves EAF steelmakers worldwide, with particular focus on specialty steel and stainless steel applications where thermal shock management is critical.
Quality Control
Every batch undergoes CTE profiling across the service temperature range, thermal shock cycling validation, and flexural strength verification under rapid temperature ramp conditions-tests that directly predict how an electrode will behave during the power surges and thermal transients typical of specialty steel EAFs.
Export Capability
Our logistics network routes electrodes to specialty steel producers in Europe, East Asia, and the Americas using climate-controlled storage and shock-absorbent packaging that protects structural integrity from factory gate to furnace column.
Technical Support
Our engineers review furnace power profiles, preheat protocols, and slag chemistry to recommend grades and operating adjustments that reduce thermal gradient stress. We also assist with root-cause analysis when thermal shock cracking occurs, identifying whether the issue stems from grade selection, joint design, or furnace practice.
Customized Solutions
We supply electrodes with CTE-matched nipple designs, optional anti-oxidation surface treatments for high-sidewall-temperature furnaces, and length increments optimized for your column management and slag-door clearance.
