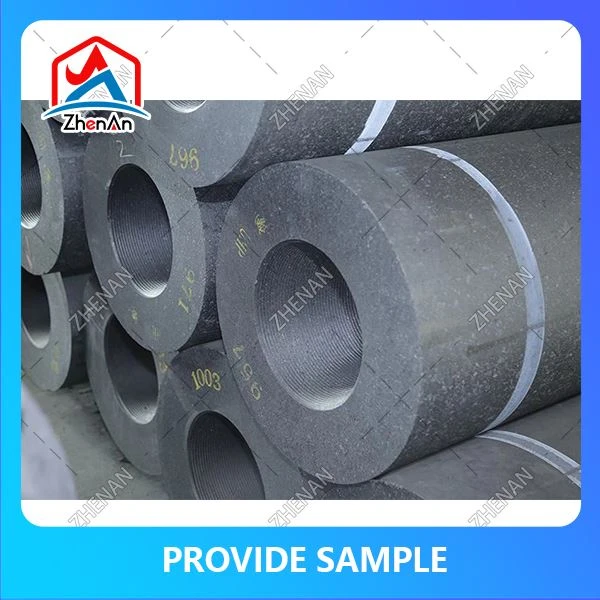

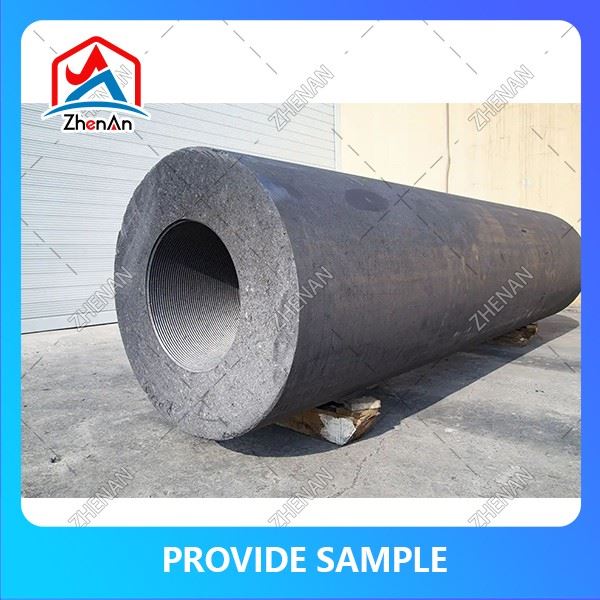

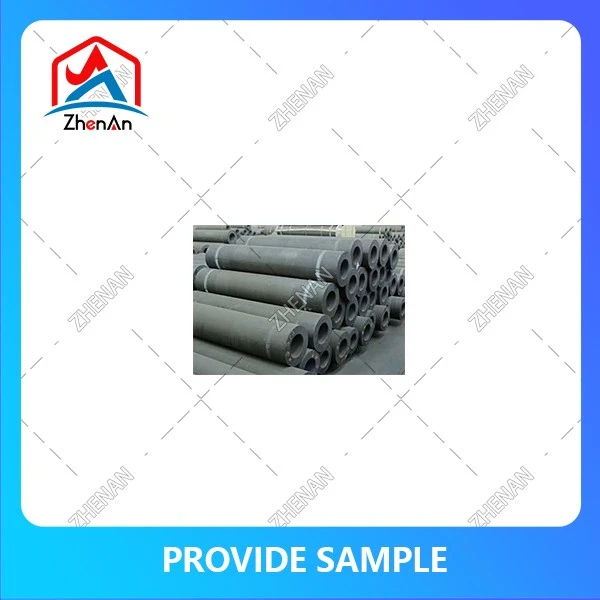

250mm Low Consumption Graphite Electrode for Cost Efficient Furnace Operation
250mm Low Consumption Graphite Electrode Overview
250mm Low Consumption Graphite Electrode is designed for electric furnace operations where reducing electrode wear, improving service life, and maintaining stable melting performance are key requirements.
Manufactured with optimized graphite structure and controlled material properties, this electrode provides improved oxidation resistance and lower consumption during high-temperature furnace operation.
The 250mm low consumption graphite electrode is mainly used in:
Continuous EAF steel production
High temperature alloy melting
Ferroalloy furnaces
Foundry melting systems
Product Highlights
| Item | Specification |
|---|---|
| Product Name | 250mm Low Consumption Graphite Electrode |
| Diameter | 250mm |
| Grade | HP / UHP |
| Length Range | 1800–2700mm |
| Connection Type | T4 / T5 Thread |
| Key Feature | Reduced Oxidation Loss |
| Material Structure | High Density Graphitized Carbon |
| Application | EAF / LF / Steel Production |
Main Features of Low Consumption Graphite Electrode
Improved Oxidation Resistance
During electric furnace operation, graphite electrodes are exposed to high-temperature oxidation from furnace atmosphere.
The 250mm low consumption graphite electrode is designed with optimized graphite properties to help:
Reduce oxidation loss
Maintain electrode shape stability
Improve electrode utilization efficiency
Extend operating intervals
Stable Performance During Continuous Melting
Continuous steel production requires electrodes that can withstand long operating cycles.
This electrode provides:
Consistent electrical conductivity
Reliable mechanical strength
Stable performance under thermal cycling
Reduced replacement frequency
Suitable for Cost-Controlled Furnace Operation
For steel plants and foundries, electrode consumption directly affects production costs.
The low consumption design helps operators achieve better efficiency through:
Longer electrode service time
Reduced electrode replacement
Improved furnace operation economics
Technical Specifications
| Parameter | Typical Value |
|---|---|
| Diameter | 250mm |
| Length | 1800–2700mm |
| Grade | HP / UHP |
| Bulk Density | ≥1.68 g/cm³ |
| Electrical Resistivity | ≤6.5 μΩ·m |
| Flexural Strength | ≥11.0 MPa |
| Ash Content | ≤0.5% |
Technical parameters can be adjusted according to furnace conditions and customer requirements.
Available Sizes
| Diameter | Length Options |
|---|---|
| 250mm | 1800mm |
| 250mm | 2100mm |
| 250mm | 2400mm |
| 250mm | 2700mm |
| Customized | Available |
Connection Options
250mm low consumption graphite electrodes are available with:
| Thread Type | Application |
|---|---|
| T4 Thread | Standard high power furnace operation |
| T5 Thread | Higher current and heavy-duty furnace conditions |
Precision-machined nipples ensure proper electrode connection and stable current transmission.
Applications
Continuous EAF Steel Production
Used in electric arc furnaces producing:
Carbon steel
Stainless steel
Alloy steel
The reduced consumption design supports longer furnace operation cycles.
Ferroalloy Furnace Operation
Suitable for:
Ferrosilicon production
Silicon metal smelting
Ferroalloy manufacturing
Foundry Melting
Applied in:
Steel casting
Iron casting
Metal recycling furnaces
Factors Affecting Graphite Electrode Consumption
| Factor | Influence |
|---|---|
| Furnace Current | Higher current increases electrode load |
| Oxidation Condition | Affects side consumption |
| Connection Quality | Influences joint stability |
| Operating Practice | Impacts electrode wear |
| Electrode Quality | Determines consumption performance |
250mm Standard Electrode vs Low Consumption Electrode
| Item | Standard Graphite Electrode | Low Consumption Graphite Electrode |
|---|---|---|
| Main Focus | General furnace operation | Reduced electrode wear |
| Oxidation Resistance | Standard | Improved |
| Service Requirement | Normal cycles | Longer operating cycles |
| Application | General EAF | Cost-sensitive continuous production |
Why Choose 250mm Low Consumption Graphite Electrode?
Designed for reduced electrode wear
Improved oxidation resistance
Suitable for continuous steel production
Compatible with HP and UHP furnace conditions
Available with T4/T5 connections
Customized specifications available

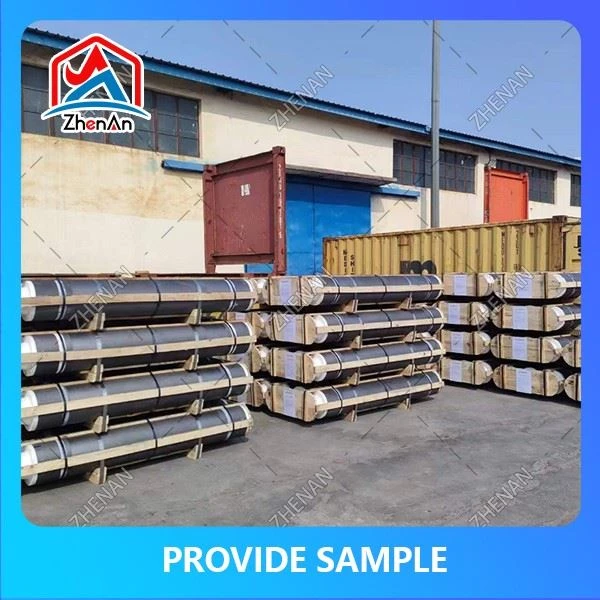

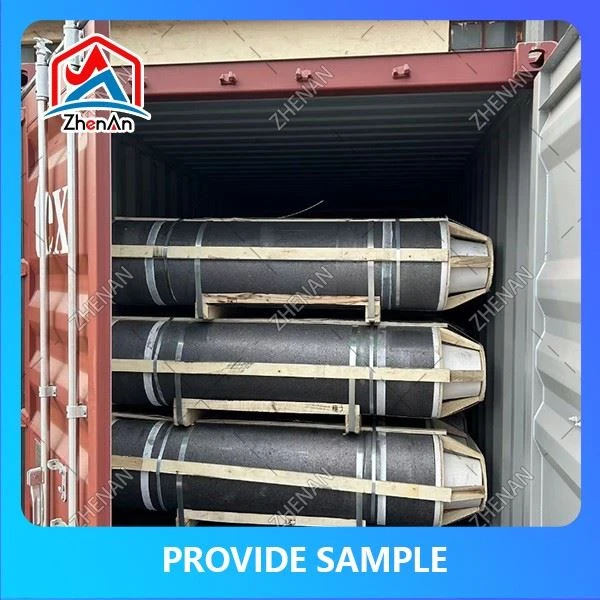

Packaging
250mm low consumption graphite electrodes are supplied with export protection:
Reinforced wooden cases
Nipple protection caps
Moisture-resistant wrapping
Customized shipping marks
FAQ
1. What is a low consumption graphite electrode?
A low consumption graphite electrode is designed to reduce material loss during furnace operation through improved oxidation resistance and optimized graphite properties.
2. What causes graphite electrode consumption?
Main factors include oxidation, operating current, furnace temperature, connection quality, and furnace operating conditions.
3. Which grade is available for 250mm low consumption graphite electrodes?
HP and UHP grades are commonly selected because they provide higher performance under demanding furnace conditions.
4. Can low consumption graphite electrodes reduce production costs?
They can help reduce electrode replacement frequency and improve operational efficiency when matched with suitable furnace conditions.
5. What industries use 250mm low consumption graphite electrodes?
They are used in steelmaking, foundries, ferroalloy production, and other high-temperature furnace applications.
6. Can the electrode size and connection type be customized?
Yes. Diameter, length, grade, nipple type, and packaging can be customized according to customer requirements.
Contact Us for 250mm Low Consumption Graphite Electrode
Looking for 250mm Low Consumption Graphite Electrode for continuous EAF steel production?
We provide graphite electrodes with:
HP / UHP grade options
Reduced consumption performance design
T4 / T5 nipple connections
Customized dimensions
Export standard packaging
Technical support for furnace applications
