Graphite Electrode For Arc Furnace

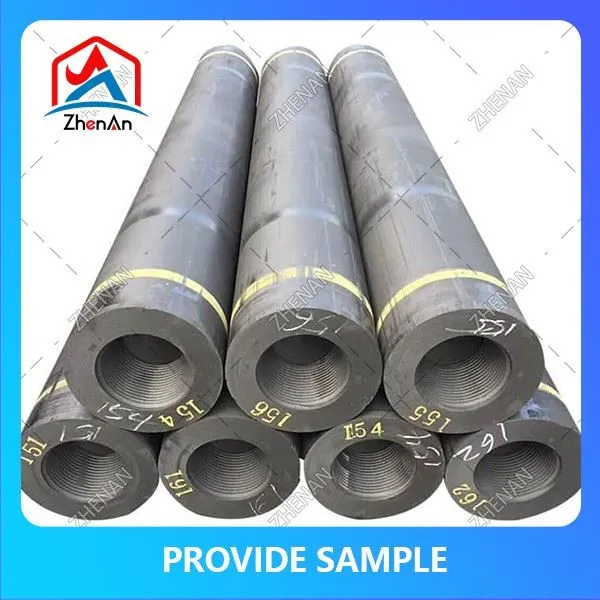

RP Hp UHP dia 200 graphite electrode for arc furnaces

 ​​

Designing graphite electrodes for arc furnaces requires balancing multiple priorities: conductivity, durability, and cost. Every component-from particle size in raw materials to the final threaded connection-is optimized to meet the unique demands of EAF operations.

One critical design choice is electrode grade. Ultra-high-power (UHP) electrodes, with resistivity < 55 μΩ·m, are standard for modern EAFs, as they enable higher current densities and faster melting. High-power (HP) electrodes (resistivity 60–70 μΩ·m) serve smaller furnaces or specialty applications, while standard (SP) electrodes (resistivity > 70 μΩ·m) are phased out due to inefficiency.

Geometry also plays a key role. Tapered profiles (narrower at the tip) distribute heat more evenly, reducing thermal stress and extending tip life. Larger diameters (up to 700 mm) lower current density, minimizing heat concentration. For example, a 600 mm UHP electrode in a 200-ton EAF reduces energy consumption by 15% compared to a 500 mm HP electrode.

Material purity is non-negotiable. Impurities like sulfur or iron increase resistivity and accelerate oxidation. Premium EAF graphite electrodes use petroleum coke with sulfur < 0.3% and total impurities < 0.1%, ensuring consistent performance. Post-manufacturing treatments, such as resin impregnation or silicon carbide coating, further enhance oxidation resistance, extending service life by 30–50% in high-cycle operations.

Innovation continues to drive design improvements. Modular electrodes (with replaceable tip sections) reduce waste by allowing only the worn tip to be replaced. Real-time monitoring systems, integrated into electrodes, provide data on temperature and wear, enabling predictive maintenance. As EAFs evolve toward smarter, more efficient operations, graphite electrode design remains at the forefront of steelmaking innovation.
