Carbon Graphite Electrode
| ITEM | Regular power | High Power | Ultra high power | ||||
| UNIT | 3-24inch | 4-24inch | 14-24inch | 12-20inch | 22-28inch | ||
| φ75-600mm | φ100-300mm | φ350-600mm | φ300-500mm | φ550-700mm | |||
| Resistivity | Electrode | μΩ*m | 7.0-9.0 | 5.8-6.8 | 5.5-6.5 | 4.8-5.8 | 4.5-5.5 |
| Nipple | 4.0-4.5 | 4.0-5.0 | 3.5-4.0 | 3.0-4.0 | 2.5-3.5 | ||
| Bending strength | Electrode | MPA | 8.0-12.0 | 9.0-12.0 | 10.0-14.0 | 10.0-15.0 | 12.0-16.0 |
| Nipple | 19.0-22.0 | 16.0-20.0 | 20.0-23.0 | 20.0-24.0 | 22.0-25.0 | ||
| Elastic Modulus | Electrode | GPA | 7.0-11.0 | 8.0-12.0 | 8.0-12.0 | 9.0-13.0 | 10.0-14.0 |
| Nipple | 12.0-14.0 | 12.0-15.0 | 14.0-16.0 | 15.0-18.0 | 16.0-19.0 | ||
| Bulk density | Electrode | g/m3 | 1.60-1.65 | 1.68-1.7 | 1.68-1.72 | 1.70-1.75 | 1.70-1.75 |
| Nipple | 1.75-1.8 | 1.78-1.82 | 1.78-1.82 | 1.78-1.85 | 1.8-1.85 | ||
| Ash | Electrode | % | 0.3 | 0.3 | 0.3 | 0.2 | 0.2 |
| Nipple | |||||||
| CTE (100-600ºC) |
Electrode | 10-6/ºC | 2.0-2.4 | 1.6-2.0 | 1.6-1.9 | 1.1-1.4 | 1.1-1.4 |
| Nipple | 1.8-2.2 | 1.1-1.5 | 1.1-1.4 | 0.9-1.2 | 0.9-1.2 | ||
Welcome to contact us for quotation.
Are "carbon graphite electrodes" and "graphite electrodes" the same thing? Which type do 200mm diameter electrodes typically fall into?
Not exactly the same.
• Carbon electrodes: Typically made from calcined anthracite or pitch coke, they have a low or no graphitization, resulting in poor electrical conductivity and high-temperature resistance.
• Graphite electrodes: Made from petroleum coke or needle coke, graphitized at high temperatures (around 3000°C), they exhibit excellent electrical and thermal conductivity.
Graphite electrodes are widely used in modern electric arc furnaces. Electrodes with a diameter of 200 mm are almost always high-power (HP) or ultra-high-power (UHP) graphite electrodes, designed to meet the demands of modern high-efficiency smelting.
Comprehensive Quality Assurance
As a trusted supplier, ZhenAn provides end-to-end quality control, inspection, and technical services throughout the production process:
Raw material chemical analysis
Molten metal chemical analysis
Particle size distribution testing and other physical assessments
Final chemical analysis before shipment
Third-party inspections available upon request

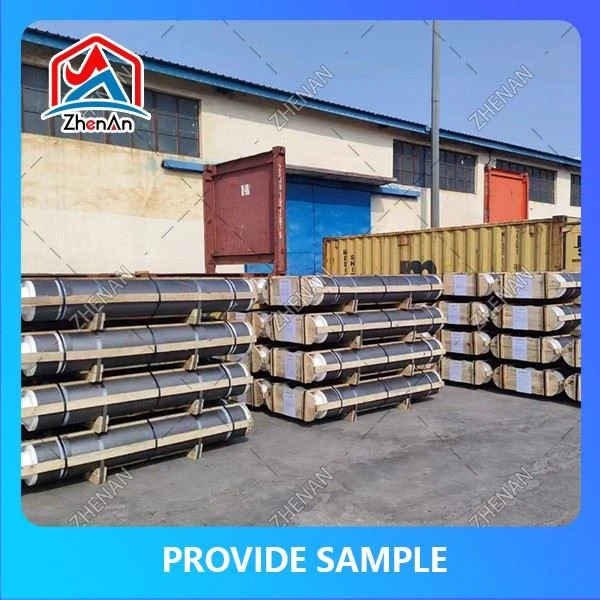

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
